问答平台（7），网站数据统计

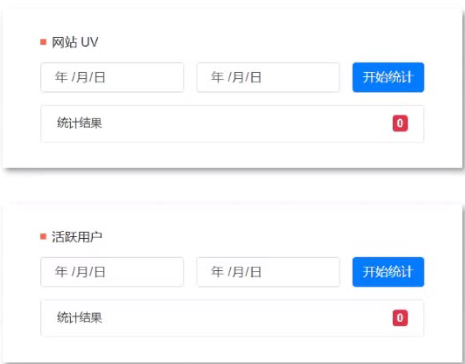

网站数据统计-图示

UV

  • 独立访客（Unique Visitor），需通过用户IP去重统计数据。
  • 每次访问都要进行统计。
  • HyperLogLog，性能好，且存储空间小。

DAU

  • 日活跃用户（Daliy Active User），需通过用户ID去重统计数据。
  • 网站定义的规则：访问过一次，则认为其活跃。
  • Bitmap，性能好，且可以统计精确结果。

工具类

  • RedisKeyUtil: 增加内容
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    private static final String PREFIX_UV = "uv";
    private static final String PREFIX_DAU = "dau";

    // 单日UV
    public static String getUVKey(String date) {
        return PREFIX_UV + SPLIT + date;
    }

    // 区间UV
    public static String getUVKey(String startDate, String endDate) {
        return PREFIX_UV + SPLIT + startDate + SPLIT + endDate;
    }

    // 单日活跃用户
    public static String getDAUKey(String date) {
        return PREFIX_DAU + SPLIT + date;
    }

    // 区间活跃用户
    public static String getDAUKey(String startDate, String endDate) {
        return PREFIX_DAU + SPLIT + startDate + SPLIT + endDate;
    }

业务层

  • DataService: 新增
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    @Service
    public class DataService {

        @Autowired
        private RedisTemplate redisTemplate;

        private SimpleDateFormat df = new SimpleDateFormat("yyyyMMdd");

        // 将指定的IP计入UV
        public void recordUV(String ip) {
            String redisKey = RedisKeyUtil.getUVKey(df.format(new Date()));
            redisTemplate.opsForHyperLogLog().add(redisKey, ip);
        }

        // 统计指定日期范围内的UV
        public long calculateUV(Date start, Date end) {
            if (start == null || end == null) {
                throw new IllegalArgumentException("参数不能为空!");
            }

            // 整理该日期范围内的key
            List<String> keyList = new ArrayList<>();
            Calendar calendar = Calendar.getInstance();
            calendar.setTime(start);
            while (!calendar.getTime().after(end)) {
                String key = RedisKeyUtil.getUVKey(df.format(calendar.getTime()));
                keyList.add(key);
                calendar.add(Calendar.DATE, 1);
            }

            // 合并这些数据
            String redisKey = RedisKeyUtil.getUVKey(df.format(start), df.format(end));
            redisTemplate.opsForHyperLogLog().union(redisKey, keyList.toArray());

            // 返回统计的结果
            return redisTemplate.opsForHyperLogLog().size(redisKey);
        }

        // 将指定用户计入DAU
        public void recordDAU(int userId) {
            String redisKey = RedisKeyUtil.getDAUKey(df.format(new Date()));
            redisTemplate.opsForValue().setBit(redisKey, userId, true);
        }

        // 统计指定日期范围内的DAU
        public long calculateDAU(Date start, Date end) {
            if (start == null || end == null) {
                throw new IllegalArgumentException("参数不能为空!");
            }

            // 整理该日期范围内的key
            List<byte[]> keyList = new ArrayList<>();
            Calendar calendar = Calendar.getInstance();
            calendar.setTime(start);
            while (!calendar.getTime().after(end)) {
                String key = RedisKeyUtil.getDAUKey(df.format(calendar.getTime()));
                keyList.add(key.getBytes());
                calendar.add(Calendar.DATE, 1);
            }

            // 进行OR运算
            return (long) redisTemplate.execute(new RedisCallback() {
                @Override
                public Object doInRedis(RedisConnection redisConnection) throws DataAccessException {
                    String redisKey = RedisKeyUtil.getDAUKey(df.format(start), df.format(end));
                    redisConnection.bitOp(RedisStringCommands.BitOperation.OR,
                            redisKey.getBytes(), keyList.toArray(new byte[0][0]));

                    return redisConnection.bitCount(redisKey.getBytes());
                }
            });
        }
    }

拦截器

  • DataInterceptor: 新增
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    @Component
    public class DataInterceptor implements HandlerInterceptor {

        @Autowired
        private DataService dataService;

        @Autowired
        private HostHolder hostHolder;

        @Override
        public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
            // 统计UV
            String ip = request.getRemoteHost();
            dataService.recordUV(ip);

            // 统计DAU
            User user = hostHolder.getUser();
            if (user != null) {
                dataService.recordDAU(user.getId());
            }

            return true;
        }
    }

config

  • WebMvcConfig: 增加内容
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    @Autowired
    private DataInterceptor dataInterceptor;

    // 添加拦截器
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        //将拦截器加入registry对象
        registry.addInterceptor(dataInterceptor)
                .excludePathPatterns("/**/*.css", "/**/*.js", "/**/*.png", "/**/*.jpg", "/**/*.jpeg");
    }

表现层

  • DataController: 新增
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    @Controller
    public class DataController {

        @Autowired
        private DataService dataService;

        // 统计页面
        @RequestMapping(path = "/data", method = { RequestMethod.GET, RequestMethod.POST })
        public String getDataPage() {
            return "/site/admin/data";
        }

        // 统计网站UV
        @RequestMapping(path = "/data/uv", method = RequestMethod.POST)
        public String getUV(@DateTimeFormat(pattern = "yyyy-MM-dd") Date start,
                            @DateTimeFormat(pattern = "yyyy-MM-dd") Date end, Model model) {
            long uv = dataService.calculateUV(start, end);
            model.addAttribute("uvResult", uv);
            model.addAttribute("uvStartDate", start);
            model.addAttribute("uvEndDate", end);
            return "forward:/data";
        }

        // 统计活跃用户DAU
        @RequestMapping(path = "/data/dau", method = RequestMethod.POST)
        public String getDAU(@DateTimeFormat(pattern = "yyyy-MM-dd") Date start,
                             @DateTimeFormat(pattern = "yyyy-MM-dd") Date end, Model model) {
            long dau = dataService.calculateDAU(start, end);
            model.addAttribute("dauResult", dau);
            model.addAttribute("dauStartDate", start);
            model.addAttribute("dauEndDate", end);
            return "forward:/data";
        }

    }

权限控制

  • SecurityConfig: 修改，"/data/**"
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    @Override
        protected void configure(HttpSecurity http) throws Exception {
            // 授权
            http.authorizeRequests()
                    .antMatchers(
                            "/discuss/delete",
                            "/data/**"
                    )
                    .hasAnyAuthority(
                            AUTHORITY_ADMIN
                    )
                    .anyRequest().permitAll()
                    .and().csrf().disable();

        // 权限不够时的处理(略)
    }

页面

  • data.html: 修改
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    <!-- 内容 -->
    <!-- 网站UV -->
    <form class="form-inline mt-3" method="post" th:action="@{/data/uv}">
        <input type="date" class="form-control" required name="start"
                th:value="${#dates.format(uvStartDate, 'yyyy-MM-dd')}"/>
        <input type="date" class="form-control ml-3" required name="end"
                th:value="${#dates.format(uvEndDate, 'yyyy-MM-dd')}"/>
        <button type="submit" class="btn btn-primary ml-3">开始统计</button>
    </form>
    <ul class="list-group mt-3 mb-3">
        <li class="list-group-item d-flex justify-content-between align-items-center">
            统计结果
            <span class="badge badge-primary badge-danger font-size-14" th:text="${uvResult}">0</span>
        </li>
    </ul>
    <!-- 活跃用户DAU -->
    <form class="form-inline mt-3" method="post" th:action="@{/data/dau}">
        <input type="date" class="form-control" required name="start"
                th:value="${#dates.format(dauStartDate, 'yyyy-MM-dd')}"/>
        <input type="date" class="form-control ml-3" required name="end"
                th:value="${#dates.format(dauEndDate, 'yyyy-MM-dd')}"/>
        <button type="submit" class="btn btn-primary ml-3">开始统计</button>
    </form>
    <ul class="list-group mt-3 mb-3">
        <li class="list-group-item d-flex justify-content-between align-items-center">
            统计结果
            <span class="badge badge-primary badge-danger font-size-14" th:text="${dauResult}">0</span>
        </li>
    </ul>

结果展示

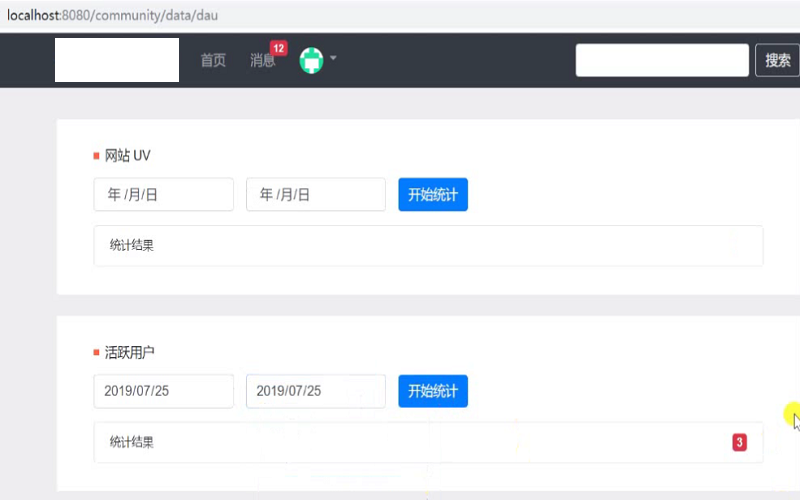

网站数据统计结果-图示
