问答平台（7），文件上传至云服务器
七牛云
1 | |
客户端上传
1 | |
导入依赖
1 | |
配置文件
1 | |
表现层
- UserController: 重构
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43@Value("${qiniu.key.access}")
private String accessKey;
@Value("${qiniu.key.secret}")
private String secretKey;
@Value("${qiniu.bucket.header.name}")
private String headerBucketName;
@Value("${qiniu.bucket.header.url}")
private String headerBucketUrl;
@LoginRequired
@RequestMapping(path = "/setting", method = RequestMethod.GET)
public String getSettingPage(Model model) {
// 上传文件名称
String fileName = CommunityUtil.generateUUID();
// 设置响应信息
StringMap policy = new StringMap();
policy.put("returnBody", CommunityUtil.getJSONString(0));
// 生成上传凭证
Auth auth = Auth.create(accessKey, secretKey);
String uploadToken = auth.uploadToken(headerBucketName, fileName, 3600, policy);
model.addAttribute("uploadToken", uploadToken);
model.addAttribute("fileName", fileName);
return "/site/setting";
}
// 更新头像路径
@RequestMapping(path = "/header/url", method = RequestMethod.POST)
@ResponseBody
public String updateHeaderUrl(String fileName) {
if (StringUtils.isBlank(fileName)) {
return CommunityUtil.getJSONString(1, "文件名不能为空!");
}
String url = headerBucketUrl + "/" + fileName;
userService.updateHeader(hostHolder.getUser().getId(), url);
return CommunityUtil.getJSONString(0);
}
页面
- setting.html: 修改
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15<!-- 内容 -->
<!-- 上传到七牛云 -->
<form class="mt-5" id="uploadForm">
<div class="col-sm-10">
<div class="custom-file">
<input type="hidden" name="token" th:value="${uploadToken}">
<input type="hidden" name="key" th:value="${fileName}">
<input type="file" class="custom-file-input" id="head-image" name="file" lang="es" required="">
<label class="custom-file-label" for="head-image" data-browse="文件">选择一张图片</label>
<div class="invalid-feedback">
上传图片出错!
</div>
</div>
</div>
</form> - setting.js: 新增
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33$(function () {
$("#uploadForm").submit(upload);
});
function upload() {
$.ajax({
url: "http://upload-z1.qiniup.com",
method: "post",
processData: false,
contentType: false,
data: new FormData($("#uploadForm")[0]),
success: function (data) {
if (data && data.code == 0) {
// 更新头像访问路径
$.post(
CONTEXT_PATH + "/user/header/url",
{"fileName": $("input[name='key']").val()},
function (data) {
data = $.parseJSON(data);
if (data.code == 0) {
window.location.reload();
} else {
alert(data.msg);
}
}
);
} else {
alert("上传失败!");
}
}
});
return false;
}
服务器直传
1 | |
表现层
- ShareController: 重构
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31@Value("${qiniu.bucket.share.url}")
private String shareBucketUrl;
@RequestMapping(path = "/share", method = RequestMethod.GET)
@ResponseBody
public String share(String htmlUrl) {
// 文件名
String fileName = CommunityUtil.generateUUID();
// 异步生成长图
Event event = new Event()
.setTopic(TOPIC_SHARE)
.setData("htmlUrl", htmlUrl)
.setData("fileName", fileName)
.setData("suffix", ".png");
eventProducer.fireEvent(event);
// 返回访问路径
Map<String, Object> map = new HashMap<>();
// map.put("shareUrl", domain + contextPath + "/share/image/" + fileName);
map.put("shareUrl", shareBucketUrl + "/" + fileName);
return CommunityUtil.getJSONString(0, null, map);
}
// 废弃
// 获取长图
@RequestMapping(path = "/share/image/{fileName}", method = RequestMethod.GET)
public void getShareImage(@PathVariable("fileName") String fileName, HttpServletResponse response) {
}
消费事件
- EventConsumer: 修改
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115@Value("${qiniu.key.access}")
private String accessKey;
@Value("${qiniu.key.secret}")
private String secretKey;
@Value("${qiniu.bucket.share.name}")
private String shareBucketName;
@Autowired
private ThreadPoolTaskScheduler taskScheduler;
// 消费分享事件
@KafkaListener(topics = TOPIC_SHARE)
public void handleShareMessage(ConsumerRecord record) {
if (record == null || record.value() == null) {
logger.error("消息的内容为空!");
return;
}
Event event = JSONObject.parseObject(record.value().toString(), Event.class);
if (event == null) {
logger.error("消息格式错误!");
return;
}
String htmlUrl = (String) event.getData().get("htmlUrl");
String fileName = (String) event.getData().get("fileName");
String suffix = (String) event.getData().get("suffix");
String cmd = wkImageCommand + " --quality 75 "
+ htmlUrl + " " + wkImageStorage + "/" + fileName + suffix;
try {
Runtime.getRuntime().exec(cmd);
logger.info("生成长图成功: " + cmd);
} catch (IOException e) {
logger.info("生成长图失败: " + e.getMessage());
}
// 启动定时器，监视该图片，一旦生成了，则上传至七牛云
UploadTask task = new UploadTask(fileName, suffix);
Future future = taskScheduler.scheduleAtFixedRate(task, 500);
task.setFuture(future);
}
class UploadTask implements Runnable {
// 文件名称
private String fileName;
// 文件后缀
private String suffix;
// 启动任务的返回值
private Future future;
// 开始时间
private long startTime;
// 上传次数
private int uploadTimes;
public UploadTask(String fileName, String suffix) {
this.fileName = fileName;
this.suffix = suffix;
this.startTime = System.currentTimeMillis();
}
public void setFuture(Future future) {
this.future = future;
}
@Override
public void run() {
// 生成图片失败（30s）
if (System.currentTimeMillis() - startTime > 30000) {
logger.error("执行时间过长,终止任务:" + fileName);
future.cancel(true);
return;
}
// 上传失败
if (uploadTimes >= 3) {
logger.error("上传次数过多,终止任务:" + fileName);
future.cancel(true);
return;
}
String path = wkImageStorage + "/" + fileName + suffix;
File file = new File(path);
if (file.exists()) {
logger.info(String.format("开始第%d次上传[%s].", ++uploadTimes, fileName));
// 设置响应信息
StringMap policy = new StringMap();
policy.put("returnBody", CommunityUtil.getJSONString(0));
// 生成上传凭证
Auth auth = Auth.create(accessKey, secretKey);
String uploadToken = auth.uploadToken(shareBucketName, fileName, 3600, policy);
// 指定上传机房
UploadManager manager = new UploadManager(new Configuration(Zone.zone1()));
try {
// 开始上传图片
Response response = manager.put(
path, fileName, uploadToken, null, "image/" + suffix, false);
// 处理响应结果
JSONObject json = JSONObject.parseObject(response.bodyString());
if (json == null || json.get("code") == null || !json.get("code").toString().equals("0")) {
logger.info(String.format("第%d次上传失败[%s].", uploadTimes, fileName));
} else {
logger.info(String.format("第%d次上传成功[%s].", uploadTimes, fileName));
future.cancel(true);
}
} catch (QiniuException e) {
logger.info(String.format("第%d次上传失败[%s].", uploadTimes, fileName));
}
} else {
logger.info("等待图片生成[" + fileName + "].");
}
}
}

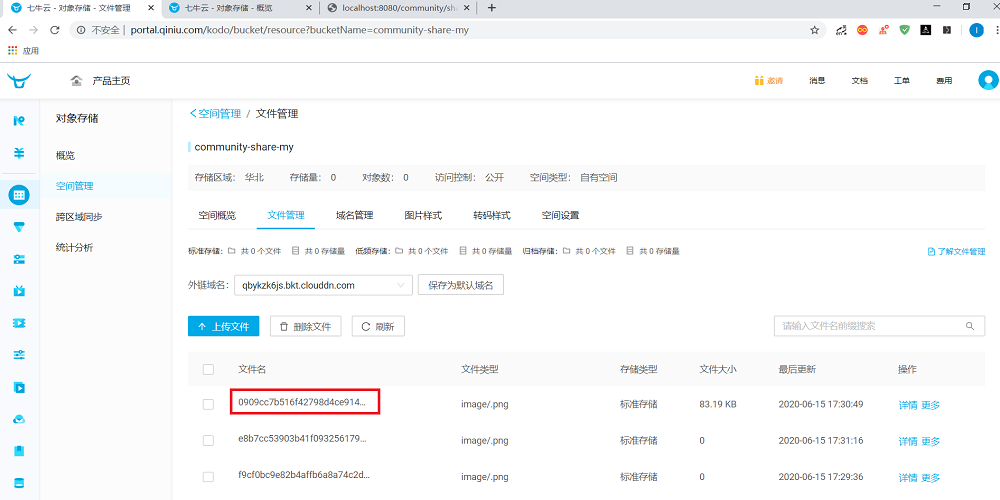

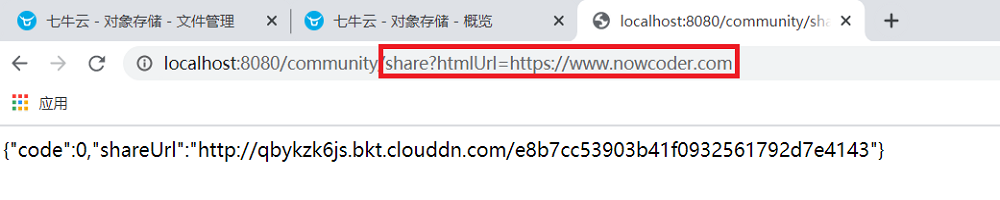

结果展示
参考资料
